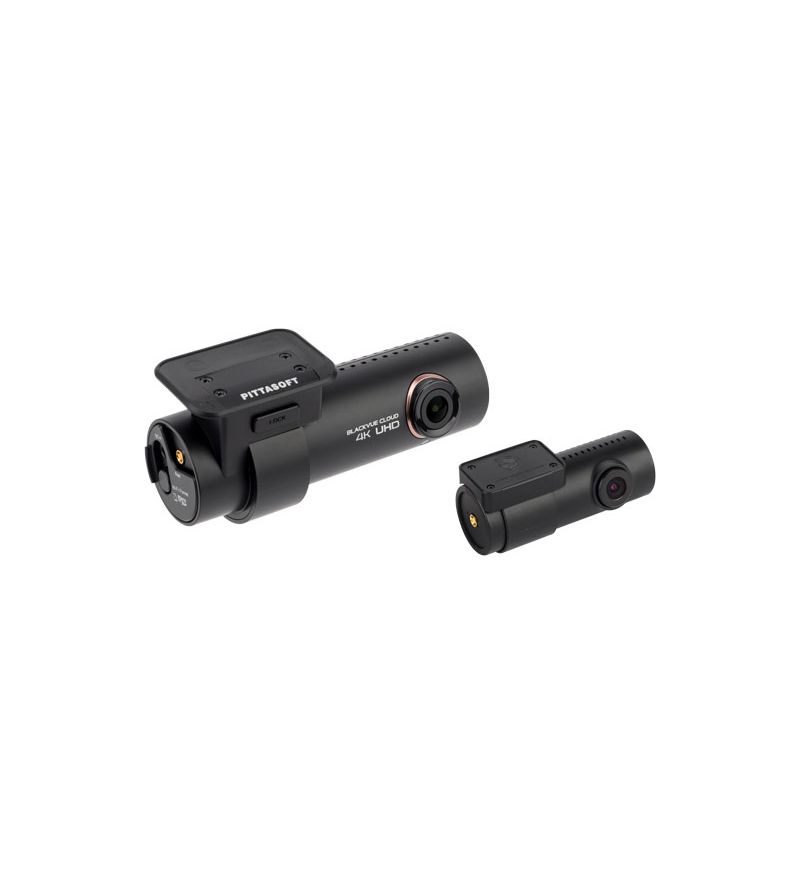

Model 3/S - BlackVue DR900X 2CH Dashcam 4K

Model Name: DR900X-2CH Premium 4K UHD Cloud Dashcam

Color/Size/Weight:

Front: Black/Width 118.5 mm x Height 36 mm/106 g
Rear: Black/Width 67.4 mm x Height 25 mm/25 g

Memory Options: microSD card (32GB/64GB/128GB/256GB)

Recording Mode:

Normal recording, Activity recording (when a collision
is detected in normal and parking modes),
Manual recording and Parking recording (when
motion is detected)
* When a wired power cable is used, the
ACC+ will activate parking mode. When using other
methods, the G-sensor will activate parking mode.

Camera:

Front: 8-megapixel CMOS sensor
Rear: STARVISTM CMOS sensor (approx. 2.1 M Pixel)
Viewing Angle:
Front: Diagonal 162°, Horizontal 136°, Vertical 77°
Rear: Diagonal 139°, Horizontal 116°, Vertical 61

Resolution/Frame Rate:

4K UHD (3840 x 2140) @30 fps - Full HD (1920 x 1080) @30 fps
* The frame rate may vary during Wi-Fi streaming.

Video codec: H.265 (HEVC), H.264 (AVC)
Image quality: Highest (Extreme), Highest, Normal
Video compression mode: MP4
Wi-Fi: built-in (802.11 a.b.g.n.ac)
GPS: built-in (Dual-Band: GPS, GLONASS)
Bluetooth: built-in (V2.1 + EDR/4.2)
LTE: external
Microphone: built-in
Speaker (voice guidance): built-in
Lights: recording LED, GPS/BT LED, Wi-Fi LED, front security LED, proximity sensor LED

Button:

Wi-Fi button:
* Press once to turn Wi-Fi on or off.
Proximity sensor:
Touching the proximity sensor turns audio recording
on/off or activates manual recording,
depending on the firmware settings.

Sensor: 3-axis acceleration sensor
Backup battery: built-in supercapacitor
Input voltage: DC 12 V - 24 V (DC plug (Ø3.5 x Ø1.35)) to wires (black: GND / yellow: B+ / red: ACC)

Power consumption:
Normal mode (Wi-Fi on / GPS on / 2KAN): 450mA/hour
Normal mode (Wi-Fi off / GPS on / 2KAN): 410 mA/hour
Parking mode (Wi-Fi on / GPS off / 2KAN): 365 mA/hour
Parking mode (Wi-Fi off / GPS off / 2KAN): 325mA/hour
* Actual power consumption may vary depending on usage and
operating and environmental conditions.

Operating temperature: -20 °C - 70 °C (-4 °F - 158 °F)
Storage temperature: -20 °C - 90 °C (-4 °F - 194 °F)
High temperature failure: Approx. 75 °C (167 °F)
Certifications: FCC, CE, RoHS, Telec, WEEE, IC

Software: BlackVue Viewer
* Windows 7 or later and Mac Yosemite OS X (10.10) or
newer
BlackVue application (Android 5.0 or later, iOS 9.0 or later)
Other: custom format free file management system

BLACKVUE APP (IOS, ANDROID) AND VIEWER (WINDOWS / MAC)

Manage your video files in a simple way. Both the BlackVue app and the Viewer can be downloaded and used for free.

This allows you to easily change your BlackVue configuration settings and browse through your videos in an intuitive way.

The BlackVue app connects to your BlackVue via Wi-Fi to access files and allows you to view Live View in real time for easy setup and positioning of your dashcam.

Optional: Mounting bracket for BlackVue dashcam.

With this custom mounting bracket, you can seamlessly mount the BlackVue dashcam to the rearview mirror of your Tesla.
